Page 301 - FreeStyler® Maintenance Manual
P. 301
MAINTENANCE

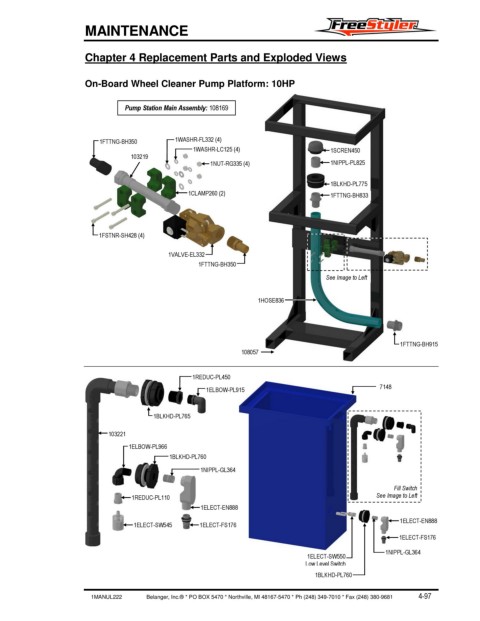

Chapter 4 Replacement Parts and Exploded Views
On-Board Wheel Cleaner Pump Platform: 10HP
Pump Station Main Assembly: 108169
1FTTNG-BH350 1WASHR-FL332 (4)
1WASHR-LC125 (4) 1SCREN450
103219
1NUT-RG335 (4) 1NIPPL-PL825
1BLKHD-PL775
1CLAMP260 (2) 1FTTNG-BH833
1FSTNR-SH428 (4)
1VALVE-EL332
1FTTNG-BH350
See Image to Left
1HOSE836
1FTTNG-BH915
108057
1REDUC-PL450
7148
1ELBOW-PL915
1BLKHD-PL765
103221
1ELBOW-PL966
1BLKHD-PL760
1NIPPL-GL364
Fill Switch
1REDUC-PL110 See Image to Left
1ELECT-EN888
1ELECT-EN888
1ELECT-SW545 1ELECT-FS176
1ELECT-FS176
1NIPPL-GL364
1ELECT-SW550
Low Level Switch
1BLKHD-PL760
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-97
