MAINTENANCE

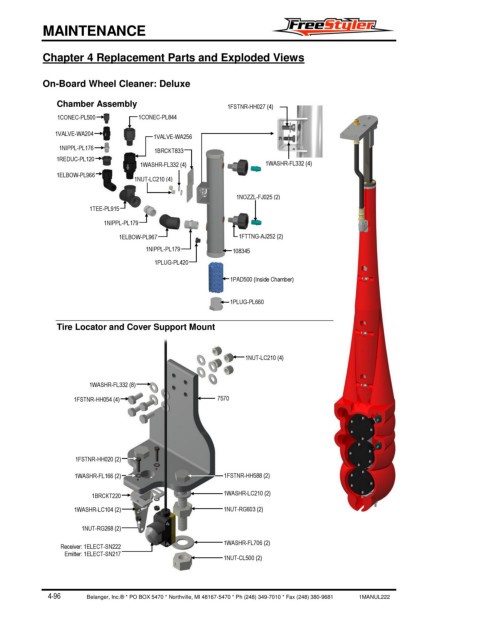

Chapter 4 Replacement Parts and Exploded Views
On-Board Wheel Cleaner: Deluxe
Chamber Assembly 1FSTNR-HH027 (4)
1CONEC-PL500 1CONEC-PL844
1VALVE-WA204 1VALVE-WA256
1NIPPL-PL176 1BRCKT833
1REDUC-PL120
1WASHR-FL332 (4) 1WASHR-FL332 (4)
1ELBOW-PL966
1NUT-LC210 (4)
1NOZZL-FJ025 (2)
1TEE-PL915
1NIPPL-PL179
1ELBOW-PL967 1FTTNG-AJ252 (2)
1NIPPL-PL179 108345
1PLUG-PL420
1PAD500 (Inside Chamber)
1PLUG-PL660
Tire Locator and Cover Support Mount
1NUT-LC210 (4)
1WASHR-FL332 (8)
1FSTNR-HH054 (4) 7570
1FSTNR-HH020 (2)
1WASHR-FL166 (2) 1FSTNR-HH588 (2)
1BRCKT220 1WASHR-LC210 (2)
1WASHR-LC104 (2) 1NUT-RG603 (2)
1NUT-RG268 (2)
1WASHR-FL706 (2)
Receiver: 1ELECT-SN222
Emitter: 1ELECT-SN217
1NUT-CL500 (2)
