MAINTENANCE

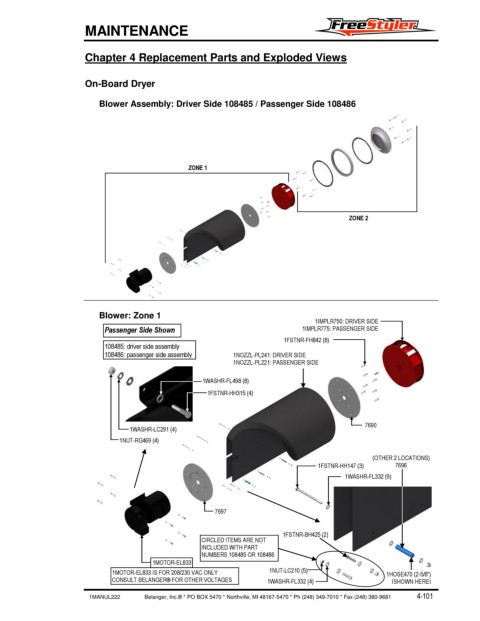

Chapter 4 Replacement Parts and Exploded Views
On-Board Dryer
Blower Assembly: Driver Side 108485 / Passenger Side 108486
ZONE 1
ZONE 2
Blower: Zone 1
1IMPLR750: DRIVER SIDE
Passenger Side Shown 1IMPLR775: PASSENGER SIDE
1FSTNR-FH842 (8)
108485: driver side assembly
108486: passenger side assembly 1NOZZL-PL241: DRIVER SIDE
1NOZZL-PL221: PASSENGER SIDE
1WASHR-FL498 (8)
1FSTNR-HH315 (4)
7690
1WASHR-LC291 (4)
1NUT-RG469 (4)
(OTHER 2 LOCATIONS)
1FSTNR-HH147 (3) 7696
1WASHR-FL332 (9)
7697
1FSTNR-BH425 (2)
CIRCLED ITEMS ARE NOT
INCLUDED WITH PART
NUMBERS 108485 OR 108486
1MOTOR-EL833
1MOTOR-EL833 IS FOR 208/230 VAC ONLY 1NUT-LC210 (5) 1HOSE470 (2-5/8”)
CONSULT BELANGER® FOR OTHER VOLTAGES 1WASHR-FL332 (4) (SHOWN HERE)
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-101
