MAINTENANCE

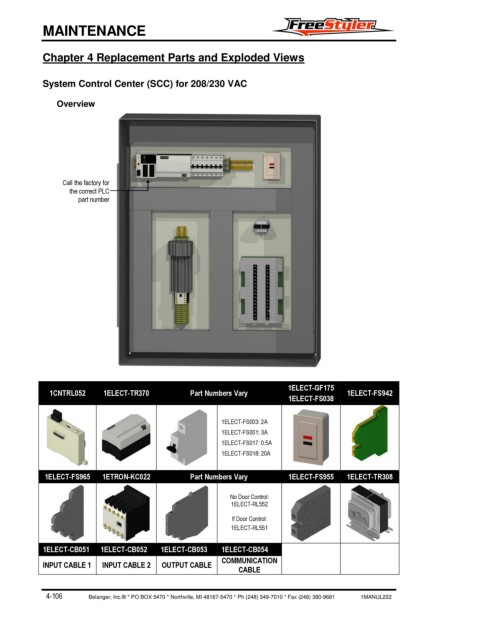

Chapter 4 Replacement Parts and Exploded Views
System Control Center (SCC) for 208/230 VAC
Overview
Call the factory for
the correct PLC
part number
1ELECT-GF175
1CNTRL052 1ELECT-TR370 Part Numbers Vary 1ELECT-FS942
1ELECT-FS038
1ELECT-FS003: 2A
1ELECT-FS001: 3A
1ELECT-FS017: 0.5A
1ELECT-FS018: 20A
1ELECT-FS965 1ETRON-KC022 Part Numbers Vary 1ELECT-FS955 1ELECT-TR308
No Door Control:
1ELECT-RL552
If Door Control:
1ELECT-RL551
1ELECT-CB051 1ELECT-CB052 1ELECT-CB053 1ELECT-CB054
COMMUNICATION
INPUT CABLE 1 INPUT CABLE 2 OUTPUT CABLE
CABLE
4-106 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL222
