MAINTENANCE

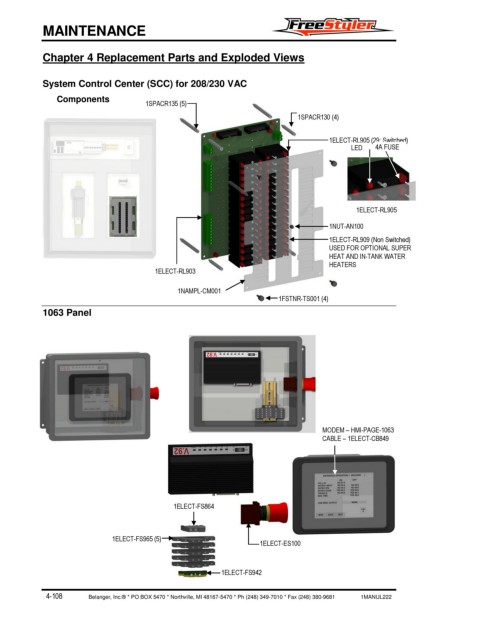

Chapter 4 Replacement Parts and Exploded Views
System Control Center (SCC) for 208/230 VAC
Components
1SPACR135 (5)
1SPACR130 (4)
1ELECT-RL905 (29: Switched)
LED 4A FUSE
1ELECT-RL905
1NUT-AN100
1ELECT-RL909 (Non Switched)
USED FOR OPTIONAL SUPER
HEAT AND IN-TANK WATER
HEATERS
1ELECT-RL903
1NAMPL-CM001
1FSTNR-TS001 (4)
1063 Panel
MODEM – HMI-PAGE-1063
CABLE – 1ELECT-CB849
1ELECT-FS864
1ELECT-FS965 (5)
1ELECT-ES100
1ELECT-FS942
