MAINTENANCE

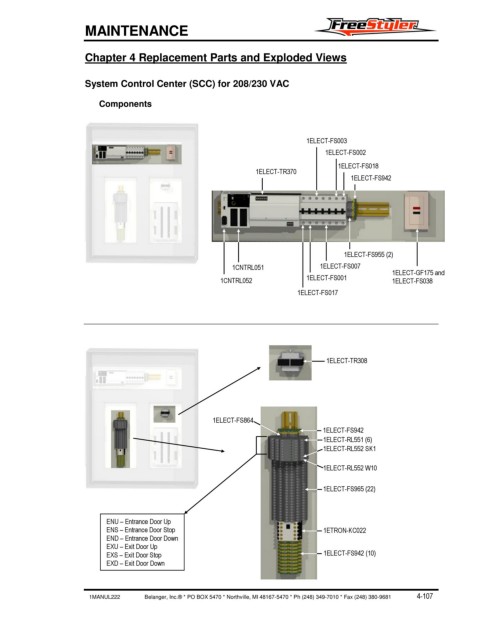

Chapter 4 Replacement Parts and Exploded Views
System Control Center (SCC) for 208/230 VAC
Components
1ELECT-FS003
1ELECT-FS002
1ELECT-FS018
1ELECT-TR370
1ELECT-FS942
1ELECT-FS955 (2)
1CNTRL051 1ELECT-FS007 1ELECT-GF175 and
1CNTRL052 1ELECT-FS001 1ELECT-FS038
1ELECT-FS017
1ELECT-TR308
1ELECT-FS864
1ELECT-FS942
1ELECT-RL551 (6)
1ELECT-RL552 SK1
1ELECT-RL552 W10
1ELECT-FS965 (22)
ENU – Entrance Door Up
ENS – Entrance Door Stop 1ETRON-KC022
END – Entrance Door Down
EXU – Exit Door Up
EXS – Exit Door Stop 1ELECT-FS942 (10)
EXD – Exit Door Down
