MAINTENANCE

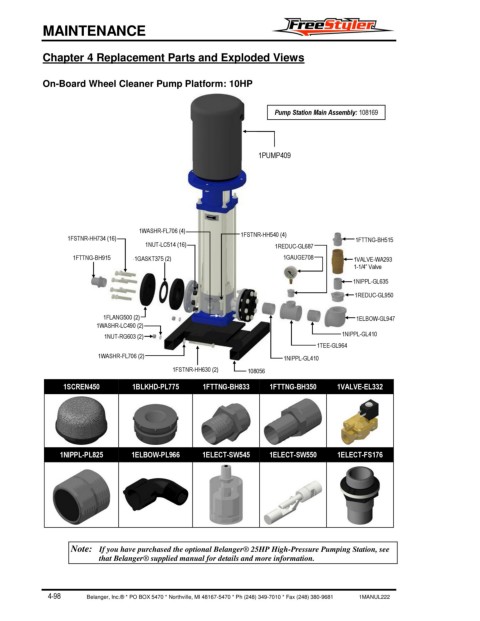

Chapter 4 Replacement Parts and Exploded Views
On-Board Wheel Cleaner Pump Platform: 10HP
Pump Station Main Assembly: 108169
1PUMP409
1WASHR-FL706 (4) 1FSTNR-HH540 (4)
1FSTNR-HH734 (16) 1FTTNG-BH515
1NUT-LC514 (16) 1REDUC-GL687
1FTTNG-BH915 1GASKT375 (2) 1GAUGE708 1VALVE-WA293
1-1/4” Valve
1NIPPL-GL635
1REDUC-GL950
1FLANG500 (2) 1ELBOW-GL947
1WASHR-LC490 (2)
1NUT-RG603 (2) 1NIPPL-GL410
1TEE-GL964
1WASHR-FL706 (2) 1NIPPL-GL410
1FSTNR-HH630 (2) 108056
1SCREN450 1BLKHD-PL775 1FTTNG-BH833 1FTTNG-BH350 1VALVE-EL332
1NIPPL-PL825 1ELBOW-PL966 1ELECT-SW545 1ELECT-SW550 1ELECT-FS176
Note: If you have purchased the optional Belanger® 25HP High-Pressure Pumping Station, see
that Belanger® supplied manual for details and more information.
