P. 295

MAINTENANCE

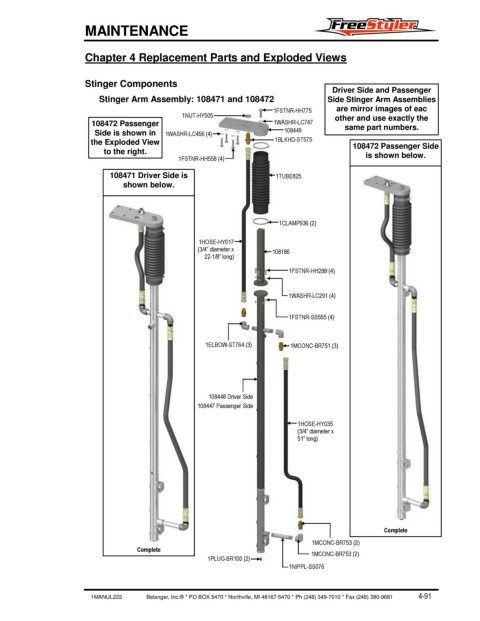

                       Chapter 4 Replacement Parts and Exploded Views


                       Stinger Components
                                                                                      Driver Side and Passenger
                          Stinger Arm Assembly: 108471 and 108472                    Side Stinger Arm Assemblies
                                                                       1FSTNR-HH775    are mirror images of eac
                                               1NUT-HY505                             other and use exactly the
                        108472 Passenger                               1WASHR-LC747      same part numbers.
                         Side is shown in   1WASHR-LC456 (4)              108449
                        the Exploded View                              1BLKHD-ST575        108472 Passenger Side
                           to the right.
                                              1FSTNR-HH558 (4)                                is shown below.

                             108471 Driver Side is                     1TUBE825
                                shown below.



                                                                        1CLAMP936 (2)

                                                    1HOSE-HY017
                                                   (3/4” diameter x   108186
                                                     22-1/8” long)

                                                                           1FSTNR-HH288 (4)


                                                                           1WASHR-LC291 (4)

                                                                           1FSTNR-SS555 (4)


                                                     1ELBOW-ST764 (3)      1MCONC-BR751 (3)






                                                      108448 Driver Side

                                                   108447 Passenger Side

                                                                             1HOSE-HY035
                                                                             (3/4” diameter x
                                                                             51” long)








                                                                                                   Complete

                                                                                 1MCONC-BR753 (2)
                                    Complete                                    1MCONC-BR753 (2)
                                                      1PLUG-BR100 (2)
                                                                           1NIPPL-SS076


                        1MANUL222              Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681                 4-91
