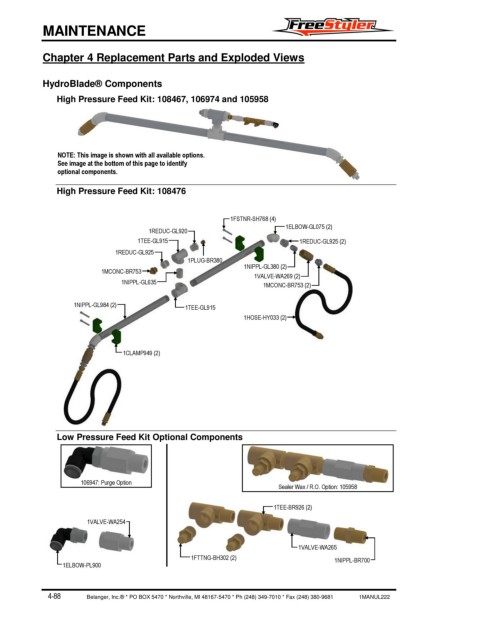

Chapter 4 Replacement Parts and Exploded Views
HydroBlade® Components
High Pressure Feed Kit: 108467, 106974 and 105958
NOTE: This image is shown with all available options.
See image at the bottom of this page to identify
optional components.
High Pressure Feed Kit: 108476
1FSTNR-SH768 (4)
1ELBOW-GL075 (2)
1REDUC-GL920
1TEE-GL915 1REDUC-GL925 (2)
1REDUC-GL925
1PLUG-BR380
1NIPPL-GL380 (2)
1MCONC-BR753
1VALVE-WA269 (2)
1NIPPL-GL635 1MCONC-BR753 (2)
1NIPPL-GL984 (2) 1TEE-GL915
1HOSE-HY033 (2)
1CLAMP949 (2)
Low Pressure Feed Kit Optional Components
106947: Purge Option
Sealer Wax / R.O. Option: 105958
1TEE-BR926 (2)
1VALVE-WA254
1VALVE-WA265
1FTTNG-BH302 (2) 1NIPPL-BR700
1ELBOW-PL900
