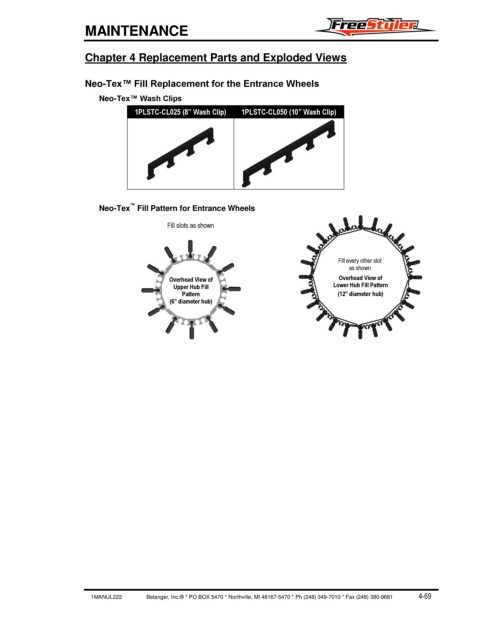

MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views
Neo-Tex™ Fill Replacement for the Entrance Wheels
Neo-Tex™ Wash Clips
1PLSTC-CL025 (8” Wash Clip) 1PLSTC-CL050 (10” Wash Clip)
™
Neo-Tex Fill Pattern for Entrance Wheels
Fill slots as shown
Fill every other slot
as shown
Overhead View of Overhead View of
Upper Hub Fill Lower Hub Fill Pattern
Pattern (12” diameter hub)
(6” diameter hub)
