MAINTENANCE

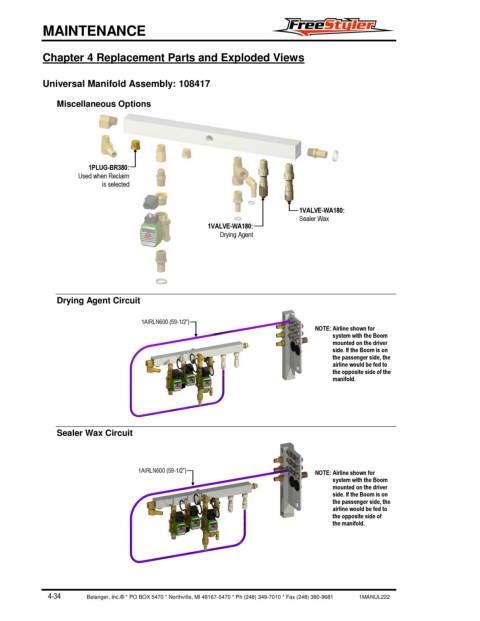

Chapter 4 Replacement Parts and Exploded Views
Universal Manifold Assembly: 108417
Miscellaneous Options
1PLUG-BR380:
Used when Reclaim
is selected
1VALVE-WA180:
Sealer Wax
1VALVE-WA180:
Drying Agent
Drying Agent Circuit
1AIRLN600 (59-1/2”)
NOTE: Airline shown for
system with the Boom
mounted on the driver
side. If the Boom is on
the passenger side, the
airline would be fed to
the opposite side of the
manifold.
Sealer Wax Circuit
1AIRLN600 (59-1/2”) NOTE: Airline shown for
system with the Boom
mounted on the driver
side. If the Boom is on
the passenger side, the
airline would be fed to
the opposite side of
the manifold.
4-34 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL222
