MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

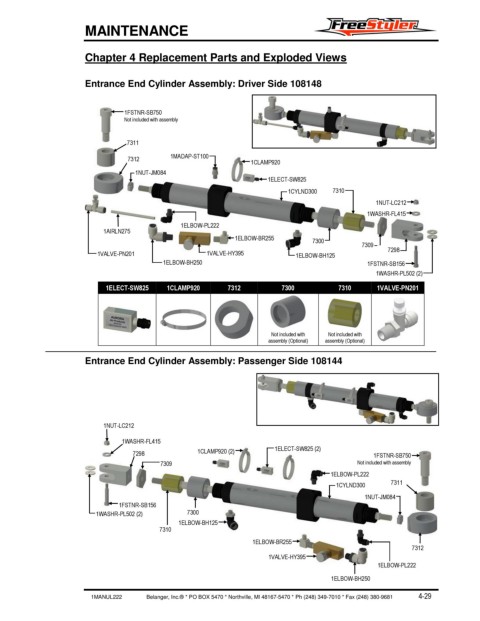

Entrance End Cylinder Assembly: Driver Side 108148
1FSTNR-SB750
Not included with assembly
7311
7312 1MADAP-ST100
1CLAMP920
1NUT-JM084
1ELECT-SW825
1CYLND300 7310
1NUT-LC212
1WASHR-FL415
1ELBOW-PL222
1AIRLN275
1ELBOW-BR255 7300
7309
1VALVE-PN201 1VALVE-HY395 1ELBOW-BH125 7298
1ELBOW-BH250 1FSTNR-SB156
1WASHR-PL502 (2)
1ELECT-SW825 1CLAMP920 7312 7300 7310 1VALVE-PN201
Not included with Not included with
assembly (Optional) assembly (Optional)
Entrance End Cylinder Assembly: Passenger Side 108144
1NUT-LC212
1WASHR-FL415
7298 1CLAMP920 (2) 1ELECT-SW825 (2) 1FSTNR-SB750
7309 Not included with assembly
1ELBOW-PL222
1CYLND300 7311
1NUT-JM084
1FSTNR-SB156
1WASHR-PL502 (2) 7300
1ELBOW-BH125
7310
1ELBOW-BR255
7312
1VALVE-HY395
1ELBOW-PL222
1ELBOW-BH250
