MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

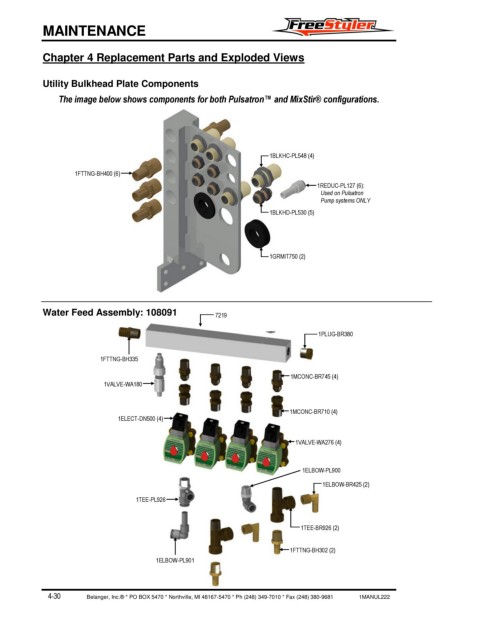

Utility Bulkhead Plate Components
The image below shows components for both Pulsatron™ and MixStir® configurations.
1BLKHC-PL548 (4)
1FTTNG-BH400 (6)
1REDUC-PL127 (6):
Used on Pulsatron
Pump systems ONLY
1BLKHD-PL530 (5)
1GRMIT750 (2)
Water Feed Assembly: 108091 7219
1PLUG-BR380
1FTTNG-BH335
1MCONC-BR745 (4)
1VALVE-WA180
1MCONC-BR710 (4)
1ELECT-DN500 (4)
1VALVE-WA276 (4)
1ELBOW-PL900
1ELBOW-BR425 (2)
1TEE-PL926
1TEE-BR926 (2)
1FTTNG-BH302 (2)
1ELBOW-PL901
