MAINTENANCE

Chapter 4 Replacement Parts and Exploded Views

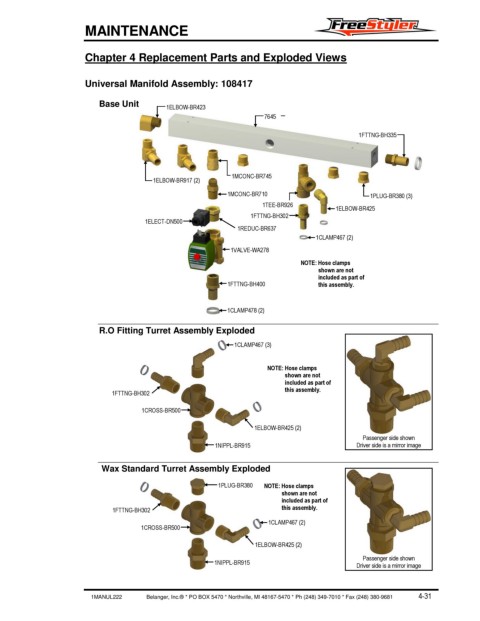

Universal Manifold Assembly: 108417

Base Unit 1ELBOW-BR423
7645

1FTTNG-BH335

1MCONC-BR745
1ELBOW-BR917 (2)
1MCONC-BR710 1PLUG-BR380 (3)
1TEE-BR926
1ELBOW-BR425
1FTTNG-BH302
1ELECT-DN500
1REDUC-BR637
1CLAMP467 (2)
1VALVE-WA278
NOTE: Hose clamps
shown are not
included as part of
1FTTNG-BH400 this assembly.

1CLAMP478 (2)

R.O Fitting Turret Assembly Exploded
1CLAMP467 (3)

NOTE: Hose clamps
shown are not
included as part of
this assembly.
1FTTNG-BH302
1CROSS-BR500

1ELBOW-BR425 (2)
Passenger side shown
1NIPPL-BR915 Driver side is a mirror image

Wax Standard Turret Assembly Exploded

1PLUG-BR380 NOTE: Hose clamps
shown are not
included as part of
1FTTNG-BH302 this assembly.
1CLAMP467 (2)
1CROSS-BR500
1ELBOW-BR425 (2)

Passenger side shown
1NIPPL-BR915
Driver side is a mirror image
