MAINTENANCE

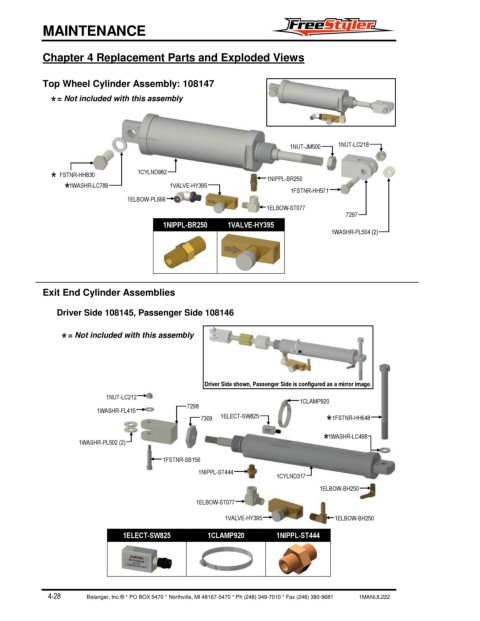

Chapter 4 Replacement Parts and Exploded Views
Top Wheel Cylinder Assembly: 108147
*
* = Not included with this assembly
1NUT-JM500 1NUT-LC218
* FSTNR-HH830 1CYLND982 1NIPPL-BR250
* 1VALVE-HY395 1FSTNR-HH571
1WASHR-LC789
1ELBOW-PL666
1ELBOW-ST077
7297
1NIPPL-BR250 1VALVE-HY395
1WASHR-PL504 (2)
Exit End Cylinder Assemblies
Driver Side 108145, Passenger Side 108146
*
* = Not included with this assembly
Driver Side shown, Passenger Side is configured as a mirror image.
1NUT-LC212 1CLAMP920
7298
1WASHR-FL415
7309 1ELECT-SW825 * 1FSTNR-HH648
*
1WASHR-LC498
1WASHR-PL502 (2)
1FSTNR-SB156
1NIPPL-ST444
1CYLND317
1ELBOW-BH250
1ELBOW-ST077
1VALVE-HY395 1ELBOW-BH250
1ELECT-SW825 1CLAMP920 1NIPPL-ST444
