MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

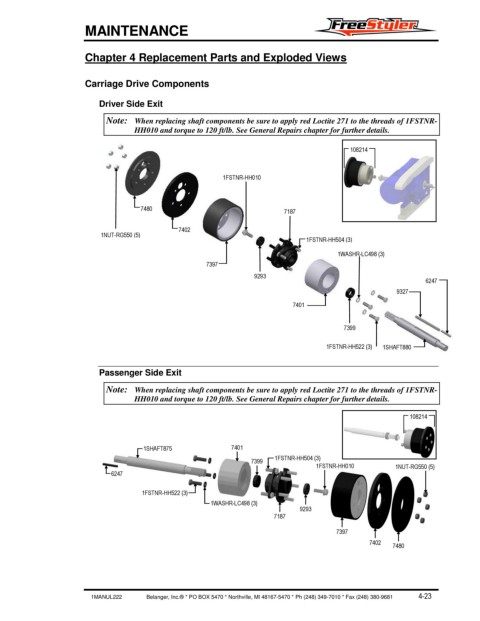

Carriage Drive Components
Driver Side Exit
Note: When replacing shaft components be sure to apply red Loctite 271 to the threads of 1FSTNR-
HH010 and torque to 120 ft/lb. See General Repairs chapter for further details.
108214
1FSTNR-HH010
7480 7187
7402
1NUT-RG550 (5)
1FSTNR-HH504 (3)
1WASHR-LC498 (3)
7397
9293
6247
9327
7401
7399
1FSTNR-HH522 (3) 1SHAFT880
Passenger Side Exit
Note: When replacing shaft components be sure to apply red Loctite 271 to the threads of 1FSTNR-
HH010 and torque to 120 ft/lb. See General Repairs chapter for further details.
108214
1SHAFT875 7401
1FSTNR-HH504 (3)
7399
1FSTNR-HH010 1NUT-RG550 (5)
6247
1FSTNR-HH522 (3)
1WASHR-LC498 (3)
9293
7187
7397
7402
7480
