MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

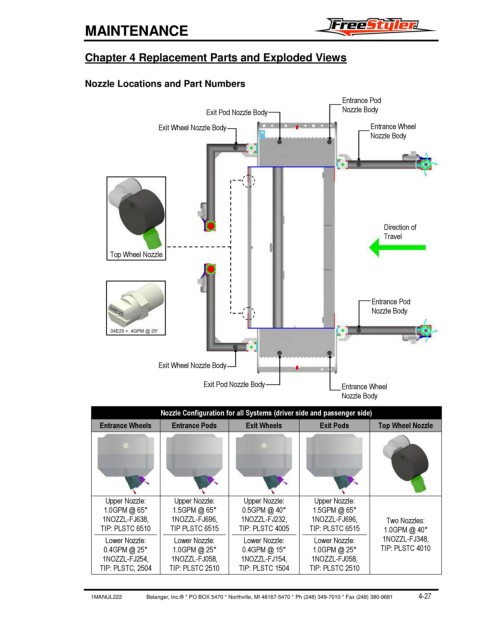

Nozzle Locations and Part Numbers
Entrance Pod
Exit Pod Nozzle Body Nozzle Body
Exit Wheel Nozzle Body Entrance Wheel
Nozzle Body
Direction of
Travel
Top Wheel Nozzle
Entrance Pod
Nozzle Body
Exit Wheel Nozzle Body
Exit Pod Nozzle Body Entrance Wheel
Nozzle Body
Nozzle Configuration for all Systems (driver side and passenger side)
Entrance Wheels Entrance Pods Exit Wheels Exit Pods Top Wheel Nozzle
Upper Nozzle: Upper Nozzle: Upper Nozzle: Upper Nozzle:
1.0GPM @ 65° 1.5GPM @ 65° 0.5GPM @ 40° 1.5GPM @ 65°
1NOZZL-FJ638, 1NOZZL-FJ696, 1NOZZL-FJ232, 1NOZZL-FJ696, Two Nozzles:
TIP: PLSTC 6510 TIP PLSTC 6515 TIP: PLSTC 4005 TIP: PLSTC 6515 1.0GPM @ 40°
Lower Nozzle: Lower Nozzle: Lower Nozzle: Lower Nozzle: 1NOZZL-FJ348,
0.4GPM @ 25° 1.0GPM @ 25° 0.4GPM @ 15° 1.0GPM @ 25° TIP: PLSTC 4010
1NOZZL-FJ254, 1NOZZL-FJ058, 1NOZZL-FJ154, 1NOZZL-FJ058,
TIP: PLSTC, 2504 TIP: PLSTC 2510 TIP: PLSTC 1504 TIP: PLSTC 2510
