Page 226 - FreeStyler® Maintenance Manual

MAINTENANCE

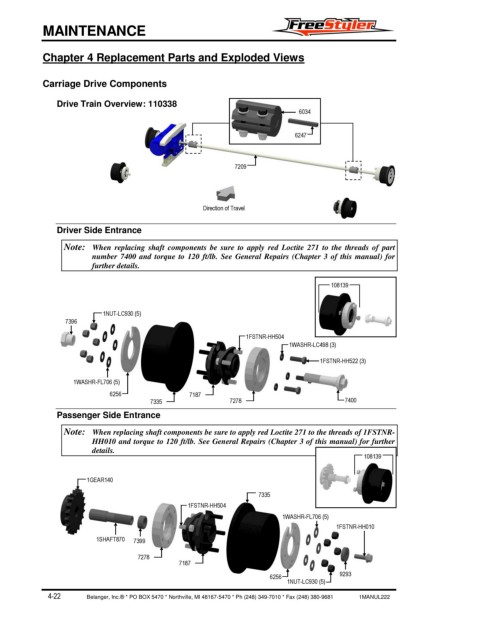

Chapter 4 Replacement Parts and Exploded Views

Carriage Drive Components

Drive Train Overview: 110338
6034

6247

7209

Direction of Travel

Driver Side Entrance

Note: When replacing shaft components be sure to apply red Loctite 271 to the threads of part
number 7400 and torque to 120 ft/lb. See General Repairs (Chapter 3 of this manual) for
further details.

108139

1NUT-LC930 (5)
7396

1FSTNR-HH504
(3) 1WASHR-LC498 (3)
1FSTNR-HH522 (3)

1WASHR-FL706 (5)
6256 7187
7335 7278 7400
Passenger Side Entrance

Note: When replacing shaft components be sure to apply red Loctite 271 to the threads of 1FSTNR-
HH010 and torque to 120 ft/lb. See General Repairs (Chapter 3 of this manual) for further
details.
108139

1GEAR140
7335
1FSTNR-HH504
(3)
1WASHR-FL706 (5)
1FSTNR-HH010

1SHAFT870 7399
7278
7187
9293
6256 1NUT-LC930 (5)
4-22 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL222
