MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

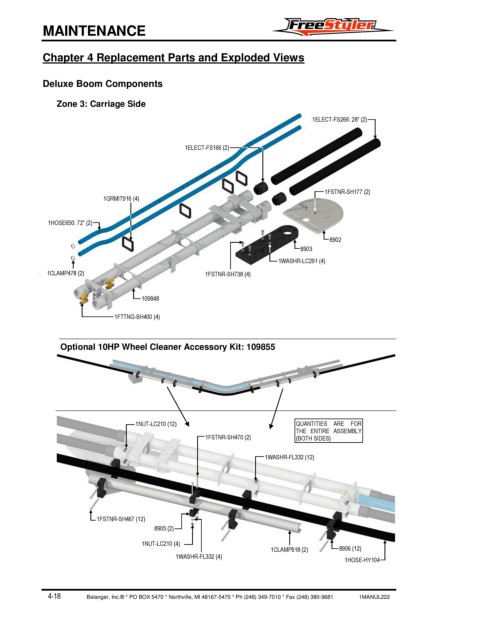

Deluxe Boom Components
Zone 3: Carriage Side
1ELECT-FS266: 28” (2)
1ELECT-FS166 (2)
1FSTNR-SH177 (2)
1GRMIT916 (4)
1HOSE650: 72” (2)
8902
8903
1WASHR-LC291 (4)
1CLAMP478 (2) 1FSTNR-SH738 (4)
109848
1FTTNG-BH400 (4)
Optional 10HP Wheel Cleaner Accessory Kit: 109855
1NUT-LC210 (12) QUANTITIES ARE FOR
THE ENTIRE ASSEMBLY
1FSTNR-SH470 (2) (BOTH SIDES)
1WASHR-FL332 (12)
1FSTNR-SH467 (12)
8905 (2)
1NUT-LC210 (4)
1CLAMP918 (2) 8906 (12)
1WASHR-FL332 (4)
1HOSE-HY104
