Page 217 - FreeStyler® Maintenance Manual
P. 217
MAINTENANCE
Chapter 4 Replacement Parts and Exploded Views

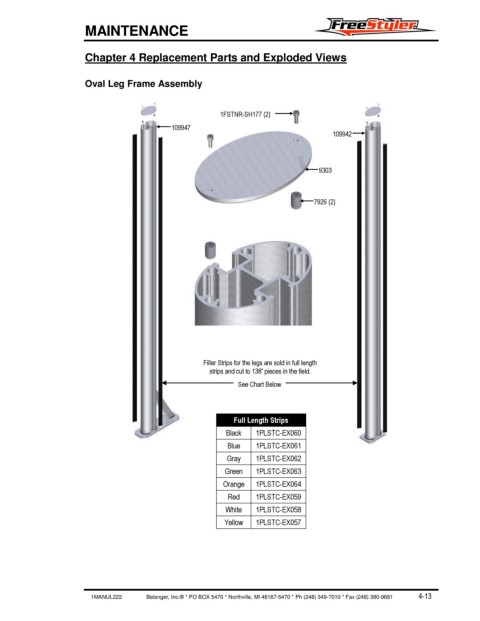

Oval Leg Frame Assembly
1FSTNR-SH177 (2)
109947
109942
9303
7926 (2)
Filler Strips for the legs are sold in full length
strips and cut to 138” pieces in the field.
See Chart Below
Full Length Strips
Black 1PLSTC-EX060
Blue 1PLSTC-EX061
Gray 1PLSTC-EX062
Green 1PLSTC-EX063
Orange 1PLSTC-EX064
Red 1PLSTC-EX059
White 1PLSTC-EX058
Yellow 1PLSTC-EX057
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-13
