MAINTENANCE

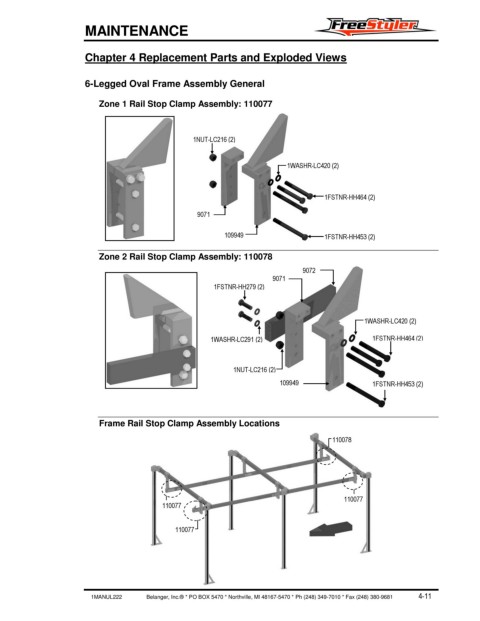

Chapter 4 Replacement Parts and Exploded Views
6-Legged Oval Frame Assembly General
Zone 1 Rail Stop Clamp Assembly: 110077
1NUT-LC216 (2)
1WASHR-LC420 (2)
1FSTNR-HH464 (2)
9071
109949 1FSTNR-HH453 (2)
Zone 2 Rail Stop Clamp Assembly: 110078
9072
9071
1FSTNR-HH279 (2)
1WASHR-LC420 (2)
1WASHR-LC291 (2) 1FSTNR-HH464 (2)
1NUT-LC216 (2)
109949 1FSTNR-HH453 (2)
Frame Rail Stop Clamp Assembly Locations
110078
110077
110077
110077
