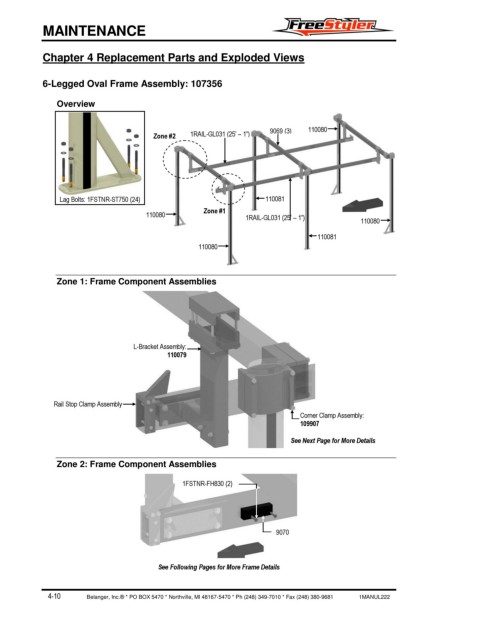

Chapter 4 Replacement Parts and Exploded Views
6-Legged Oval Frame Assembly: 107356
Overview
Zone #2 1RAIL-GL031 (25’ – 1”) 9069 (3) 110080
Lag Bolts: 1FSTNR-ST750 (24) 110081
Zone #1
110080 1RAIL-GL031 (25’ – 1”) 110080
110081
110080
Zone 1: Frame Component Assemblies
L-Bracket Assembly:
110079
Rail Stop Clamp Assembly
Corner Clamp Assembly:
109907
See Next Page for More Details
Zone 2: Frame Component Assemblies
1FSTNR-FH830 (2)
9070
See Following Pages for More Frame Details
