MAINTENANCE

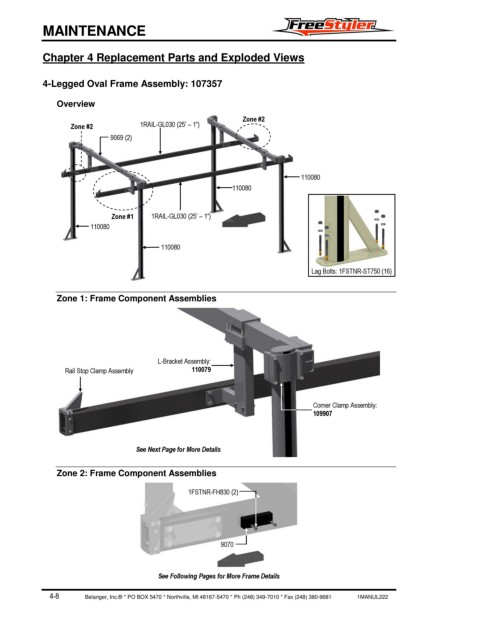

Chapter 4 Replacement Parts and Exploded Views
4-Legged Oval Frame Assembly: 107357
Overview
Zone #2
Zone #2 1RAIL-GL030 (25’ – 1”)
9069 (2)
110080
110080
Zone #1 1RAIL-GL030 (25’ – 1”)
110080
110080
Lag Bolts: 1FSTNR-ST750 (16)
Zone 1: Frame Component Assemblies
L-Bracket Assembly:
Rail Stop Clamp Assembly 110079
Corner Clamp Assembly:
109907
See Next Page for More Details
Zone 2: Frame Component Assemblies
1FSTNR-FH830 (2)
9070
See Following Pages for More Frame Details
