MAINTENANCE

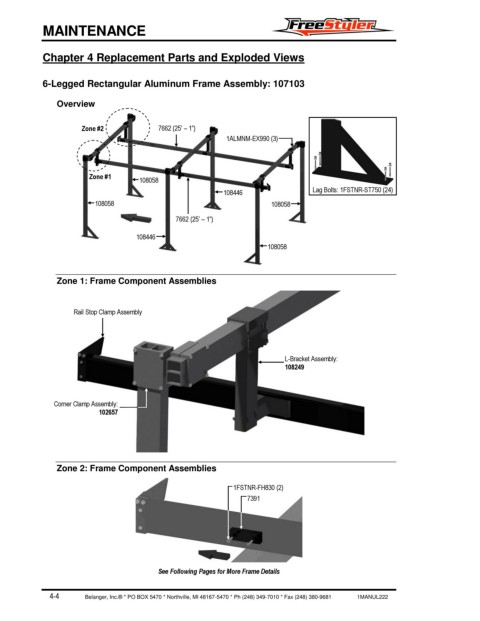

Chapter 4 Replacement Parts and Exploded Views
6-Legged Rectangular Aluminum Frame Assembly: 107103
Overview
Zone #2 7662 (25’ – 1”)
1ALMNM-EX990 (3)
Zone #1
108058
108446 Lag Bolts: 1FSTNR-ST750 (24)
108058 108058
7662 (25’ – 1”)
108446
108058
Zone 1: Frame Component Assemblies
Rail Stop Clamp Assembly
L-Bracket Assembly:
108249
Corner Clamp Assembly:
102657
Zone 2: Frame Component Assemblies
1FSTNR-FH830 (2)
7391
See Following Pages for More Frame Details
