MAINTENANCE

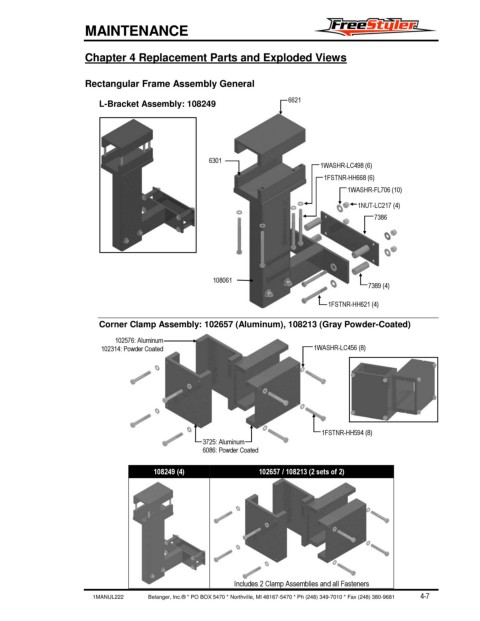

Chapter 4 Replacement Parts and Exploded Views
Rectangular Frame Assembly General
L-Bracket Assembly: 108249 6621
6301
1WASHR-LC498 (6)
1FSTNR-HH668 (6)
1WASHR-FL706 (10)
1NUT-LC217 (4)
7386
108061
7389 (4)
1FSTNR-HH621 (4)
Corner Clamp Assembly: 102657 (Aluminum), 108213 (Gray Powder-Coated)
102576: Aluminum
102314: Powder Coated 1WASHR-LC456 (8)
1FSTNR-HH594 (8)
3725: Aluminum
6086: Powder Coated
108249 (4) 102657 / 108213 (2 sets of 2)
Includes 2 Clamp Assemblies and all Fasteners
1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-7
