MAINTENANCE

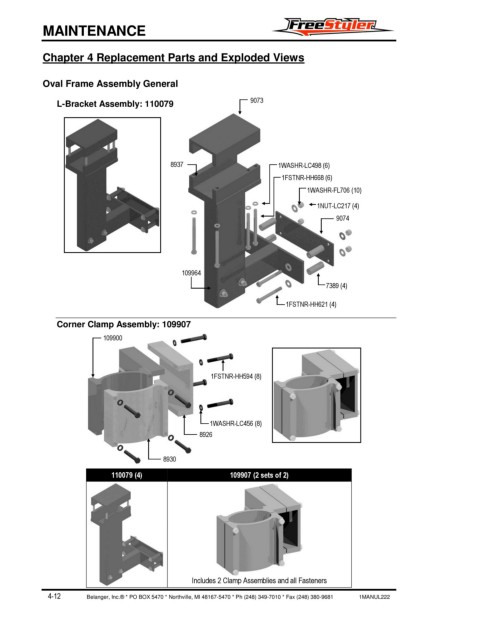

Chapter 4 Replacement Parts and Exploded Views
Oval Frame Assembly General
L-Bracket Assembly: 110079 9073
8937 1WASHR-LC498 (6)
1FSTNR-HH668 (6)
1WASHR-FL706 (10)
1NUT-LC217 (4)
9074
109964
7389 (4)
1FSTNR-HH621 (4)
Corner Clamp Assembly: 109907
109900
1FSTNR-HH594 (8)
1WASHR-LC456 (8)
8926
8930
110079 (4) 109907 (2 sets of 2)
Includes 2 Clamp Assemblies and all Fasteners
