MAINTENANCE

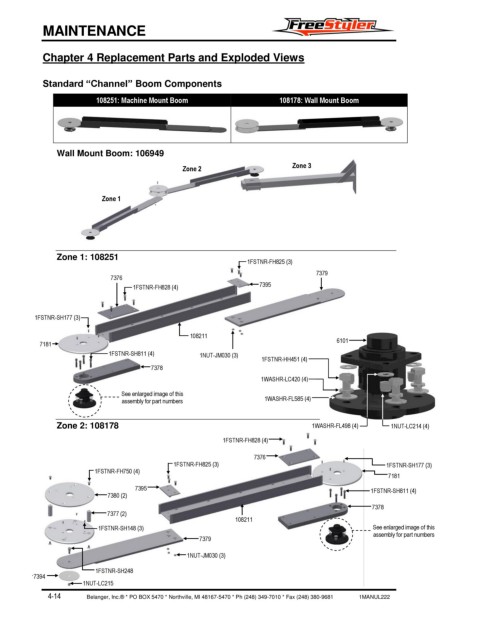

Chapter 4 Replacement Parts and Exploded Views
Standard “Channel” Boom Components
108251: Machine Mount Boom 108178: Wall Mount Boom
Wall Mount Boom: 106949
Zone 2 Zone 3
Zone 1
Zone 1: 108251
1FSTNR-FH825 (3)
7379
7376
1FSTNR-FH828 (4) 7395
1FSTNR-SH177 (3)
108211
7181 6101
1FSTNR-SH811 (4) 1NUT-JM030 (3)
1FSTNR-HH451 (4)
7378
1WASHR-LC420 (4)
See enlarged image of this
assembly for part numbers 1WASHR-FL585 (4)
Zone 2: 108178 1WASHR-FL498 (4) 1NUT-LC214 (4)
1FSTNR-FH828 (4)
7376
1FSTNR-FH825 (3) 1FSTNR-SH177 (3)
1FSTNR-FH750 (4)
7181
7395 1FSTNR-SH811 (4)
7380 (2)
7378
7377 (2)
108211
1FSTNR-SH148 (3) See enlarged image of this
assembly for part numbers
7379
1NUT-JM030 (3)
1FSTNR-SH248
7394
1NUT-LC215
