MAINTENANCE

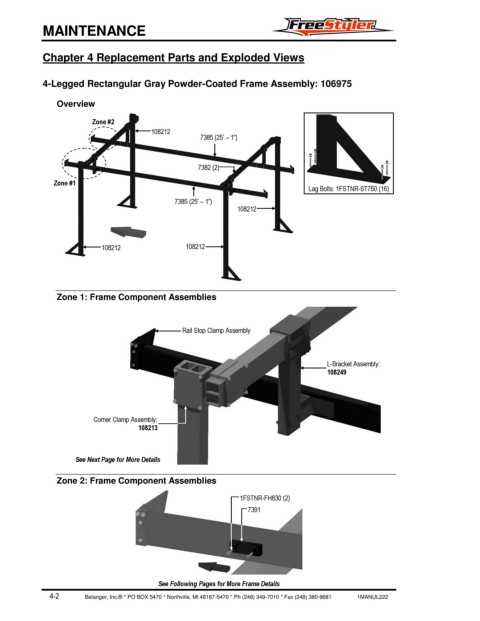

Chapter 4 Replacement Parts and Exploded Views
4-Legged Rectangular Gray Powder-Coated Frame Assembly: 106975
Overview
Zone #2
108212
7385 (25’ – 1”)
7382 (2)
Zone #1
Lag Bolts: 1FSTNR-ST750 (16)
7385 (25’ – 1”)
108212
108212 108212
Zone 1: Frame Component Assemblies
Rail Stop Clamp Assembly
L-Bracket Assembly:
108249
Corner Clamp Assembly:
108213
See Next Page for More Details
Zone 2: Frame Component Assemblies
1FSTNR-FH830 (2)
7391
See Following Pages for More Frame Details
