MAINTENANCE

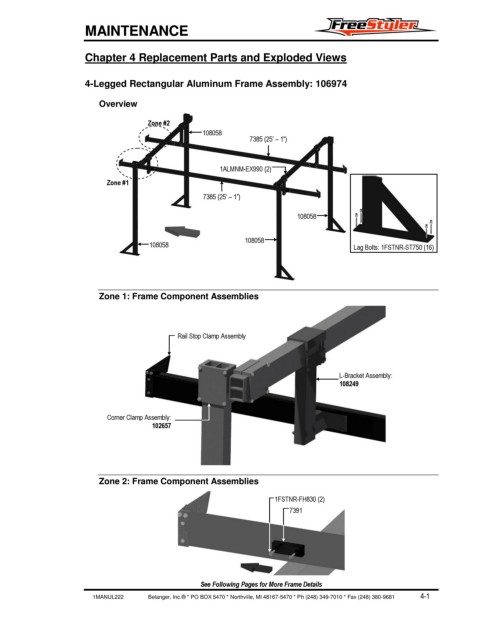

Chapter 4 Replacement Parts and Exploded Views
4-Legged Rectangular Aluminum Frame Assembly: 106974
Overview
Zone #2
108058
7385 (25’ – 1”)
1ALMNM-EX990 (2)
Zone #1
7385 (25’ – 1”)
108058
108058
108058 Lag Bolts: 1FSTNR-ST750 (16)
Zone 1: Frame Component Assemblies
Rail Stop Clamp Assembly
L-Bracket Assembly:
108249
Corner Clamp Assembly:
102657
Zone 2: Frame Component Assemblies
1FSTNR-FH830 (2)
7391
See Following Pages for More Frame Details
