MAINTENANCE

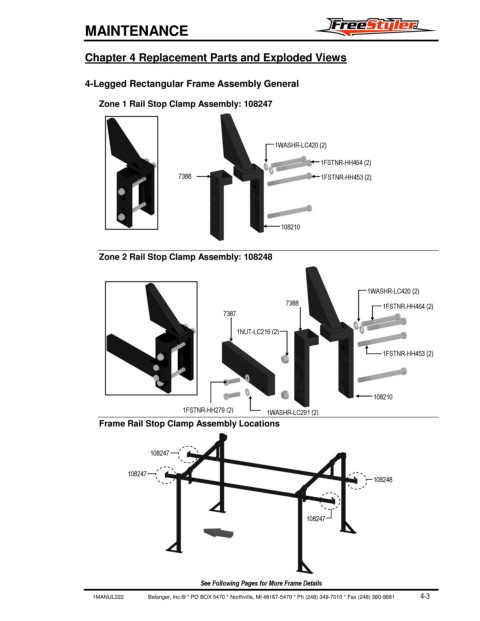

Chapter 4 Replacement Parts and Exploded Views
4-Legged Rectangular Frame Assembly General
Zone 1 Rail Stop Clamp Assembly: 108247
1WASHR-LC420 (2)
1FSTNR-HH464 (2)
7388 1FSTNR-HH453 (2)
108210
Zone 2 Rail Stop Clamp Assembly: 108248
1WASHR-LC420 (2)
7388 1FSTNR-HH464 (2)
7387
1NUT-LC216 (2)
1FSTNR-HH453 (2)
108210
1FSTNR-HH279 (2) 1WASHR-LC291 (2)
Frame Rail Stop Clamp Assembly Locations
108247
108247
108248
108247
See Following Pages for More Frame Details
