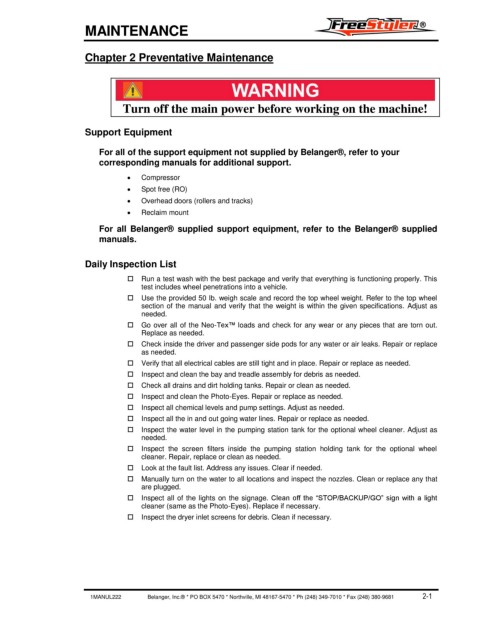

Page 29 - FreeStyler® Maintenance Manual

®
MAINTENANCE

Chapter 2 Preventative Maintenance

Turn off the main power before working on the machine!

Support Equipment

For all of the support equipment not supplied by Belanger®, refer to your
corresponding manuals for additional support.

 Compressor
 Spot free (RO)
 Overhead doors (rollers and tracks)
 Reclaim mount

For all Belanger® supplied support equipment, refer to the Belanger® supplied
manuals.

Daily Inspection List

 Run a test wash with the best package and verify that everything is functioning properly. This
test includes wheel penetrations into a vehicle.
 Use the provided 50 lb. weigh scale and record the top wheel weight. Refer to the top wheel
section of the manual and verify that the weight is within the given specifications. Adjust as
needed.
 Go over all of the Neo-Tex™ loads and check for any wear or any pieces that are torn out.
Replace as needed.
 Check inside the driver and passenger side pods for any water or air leaks. Repair or replace
as needed.
 Verify that all electrical cables are still tight and in place. Repair or replace as needed.
 Inspect and clean the bay and treadle assembly for debris as needed.
 Check all drains and dirt holding tanks. Repair or clean as needed.
 Inspect and clean the Photo-Eyes. Repair or replace as needed.
 Inspect all chemical levels and pump settings. Adjust as needed.
 Inspect all the in and out going water lines. Repair or replace as needed.
 Inspect the water level in the pumping station tank for the optional wheel cleaner. Adjust as
needed.
 Inspect the screen filters inside the pumping station holding tank for the optional wheel
cleaner. Repair, replace or clean as needed.
 Look at the fault list. Address any issues. Clear if needed.
 Manually turn on the water to all locations and inspect the nozzles. Clean or replace any that
are plugged.
 Inspect all of the lights on the signage. Clean off the “STOP/BACKUP/GO” sign with a light
cleaner (same as the Photo-Eyes). Replace if necessary.
 Inspect the dryer inlet screens for debris. Clean if necessary.

1MANUL222 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 2-1
