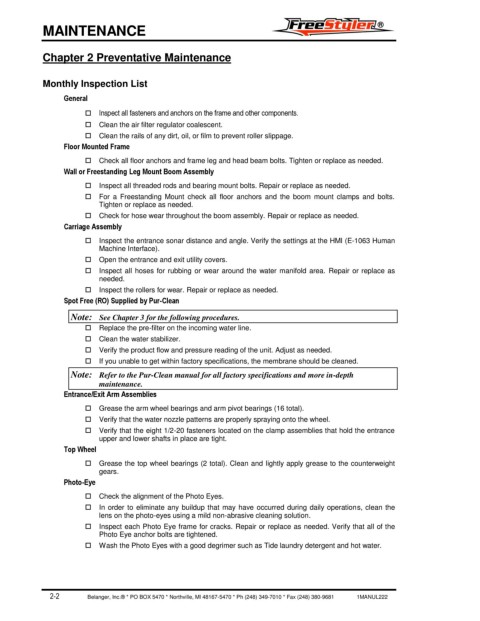

            MAINTENANCE


            Chapter 2 Preventative Maintenance


            Monthly Inspection List

                 General
                         Inspect all fasteners and anchors on the frame and other components.
                         Clean the air filter regulator coalescent.
                         Clean the rails of any dirt, oil, or film to prevent roller slippage.
                 Floor Mounted Frame
                         Check all floor anchors and frame leg and head beam bolts. Tighten or replace as needed.
                 Wall or Freestanding Leg Mount Boom Assembly
                         Inspect all threaded rods and bearing mount bolts. Repair or replace as needed.
                         For  a  Freestanding  Mount  check  all  floor  anchors  and  the  boom  mount  clamps  and  bolts.
                          Tighten or replace as needed.
                         Check for hose wear throughout the boom assembly. Repair or replace as needed.
                 Carriage Assembly

                         Inspect the entrance sonar distance and angle. Verify the settings at the HMI (E-1063 Human
                          Machine Interface).
                         Open the entrance and exit utility covers.
                         Inspect all hoses for rubbing or wear around the water manifold area. Repair or replace as
                          needed.
                         Inspect the rollers for wear. Repair or replace as needed.
                 Spot Free (RO) Supplied by Pur-Clean

                   Note:  See Chapter 3 for the following procedures.
                         Replace the pre-filter on the incoming water line.
                         Clean the water stabilizer.
                         Verify the product flow and pressure reading of the unit. Adjust as needed.
                         If you unable to get within factory specifications, the membrane should be cleaned.
                   Note:  Refer to the Pur-Clean manual for all factory specifications and more in-depth
                          maintenance.
                 Entrance/Exit Arm Assemblies
                         Grease the arm wheel bearings and arm pivot bearings (16 total).
                         Verify that the water nozzle patterns are properly spraying onto the wheel.
                         Verify that the eight 1/2-20 fasteners located on the clamp assemblies that hold the entrance
                          upper and lower shafts in place are tight.
                 Top Wheel
                         Grease the top wheel bearings (2 total). Clean and lightly apply grease to the counterweight
                          gears.
                 Photo-Eye
                         Check the alignment of the Photo Eyes.
                         In order to eliminate any buildup that may have occurred during daily operations, clean the
                          lens on the photo-eyes using a mild non-abrasive cleaning solution.
                         Inspect each Photo Eye frame for cracks. Repair or replace as needed. Verify that all of the
                          Photo Eye anchor bolts are tightened.
                         Wash the Photo Eyes with a good degrimer such as Tide laundry detergent and hot water.
