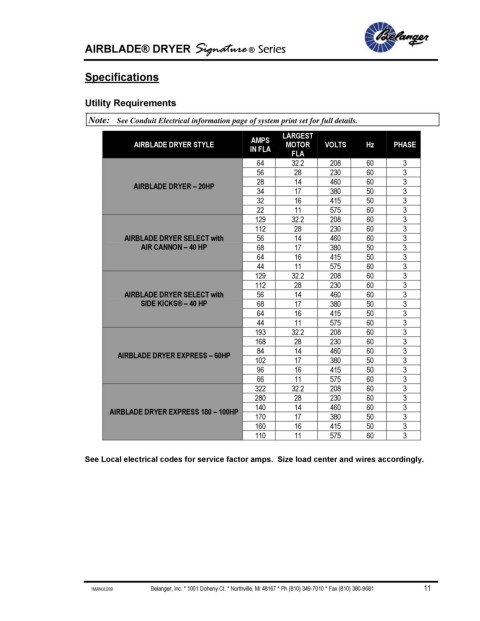

AIRBLADE® DRYER Signature ® Series
Specifications
Utility Requirements
Note: See Conduit Electrical information page of system print set for full details.
LARGEST
AMPS
AIRBLADE DRYER STYLE MOTOR VOLTS Hz PHASE
IN FLA
FLA
64 32.2 208 60 3
56 28 230 60 3
28 14 460 60 3
AIRBLADE DRYER – 20HP
34 17 380 50 3
32 16 415 50 3
22 11 575 60 3
129 32.2 208 60 3
112 28 230 60 3
AIRBLADE DRYER SELECT with 56 14 460 60 3
AIR CANNON – 40 HP 68 17 380 50 3
64 16 415 50 3
44 11 575 60 3
129 32.2 208 60 3
112 28 230 60 3
AIRBLADE DRYER SELECT with 56 14 460 60 3
SIDE KICKS® – 40 HP 68 17 380 50 3
64 16 415 50 3
44 11 575 60 3
193 32.2 208 60 3
168 28 230 60 3
84 14 460 60 3
AIRBLADE DRYER EXPRESS – 60HP
102 17 380 50 3
96 16 415 50 3
66 11 575 60 3
322 32.2 208 60 3
280 28 230 60 3
140 14 460 60 3
AIRBLADE DRYER EXPRESS 180 – 100HP
170 17 380 50 3
160 16 415 50 3
110 11 575 60 3
See Local electrical codes for service factor amps. Size load center and wires accordingly.
