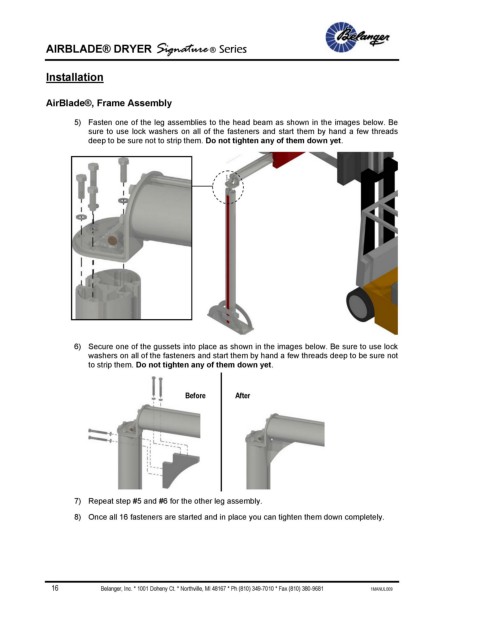

AIRBLADE® DRYER Signature ® Series
Installation
AirBlade®, Frame Assembly
5) Fasten one of the leg assemblies to the head beam as shown in the images below. Be
sure to use lock washers on all of the fasteners and start them by hand a few threads
deep to be sure not to strip them. Do not tighten any of them down yet.
6) Secure one of the gussets into place as shown in the images below. Be sure to use lock
washers on all of the fasteners and start them by hand a few threads deep to be sure not
to strip them. Do not tighten any of them down yet.
Before After
7) Repeat step #5 and #6 for the other leg assembly.
8) Once all 16 fasteners are started and in place you can tighten them down completely.
