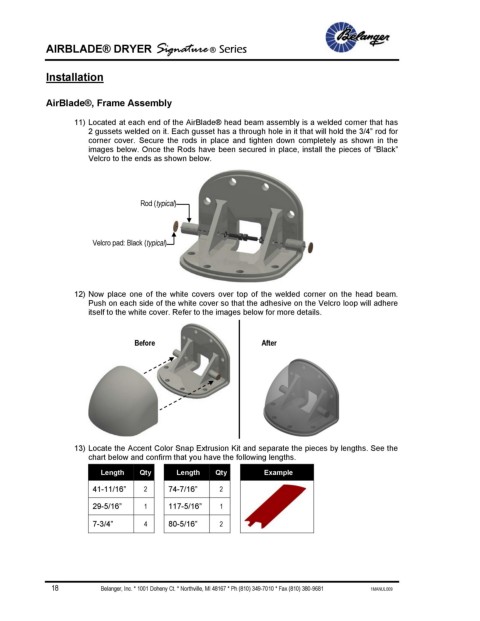

AIRBLADE® DRYER Signature ® Series

Installation

AirBlade®, Frame Assembly

11) Located at each end of the AirBlade® head beam assembly is a welded corner that has
2 gussets welded on it. Each gusset has a through hole in it that will hold the 3/4” rod for
corner cover. Secure the rods in place and tighten down completely as shown in the
images below. Once the Rods have been secured in place, install the pieces of “Black”
Velcro to the ends as shown below.

Rod (typical)

Velcro pad: Black (typical)

12) Now place one of the white covers over top of the welded corner on the head beam.
Push on each side of the white cover so that the adhesive on the Velcro loop will adhere
itself to the white cover. Refer to the images below for more details.

Before After

13) Locate the Accent Color Snap Extrusion Kit and separate the pieces by lengths. See the
chart below and confirm that you have the following lengths.

Length Qty Length Qty Example
41-11/16” 2 74-7/16” 2

29-5/16” 1 117-5/16” 1

7-3/4” 4 80-5/16” 2
