AIRBLADE® DRYER Signature ® Series
Installation
AirBlade®, Frame Assembly

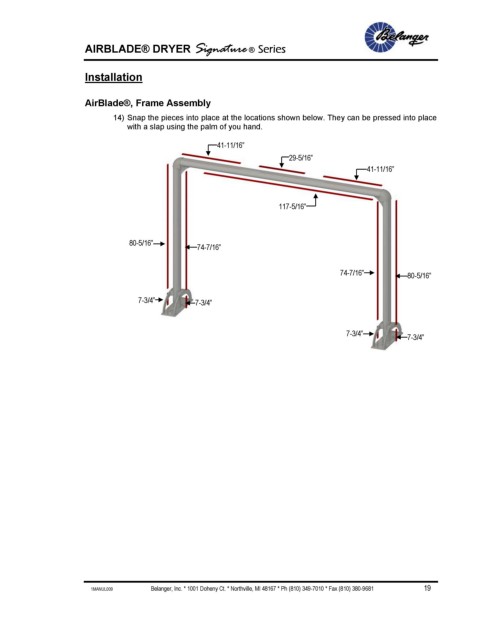

14) Snap the pieces into place at the locations shown below. They can be pressed into place
with a slap using the palm of you hand.
41-11/16”
29-5/16”
41-11/16”
117-5/16”
80-5/16”
74-7/16”
74-7/16” 80-5/16”
7-3/4” 7-3/4”
7-3/4” 7-3/4”
