AIRBLADE® DRYER Signature ® Series
Installation

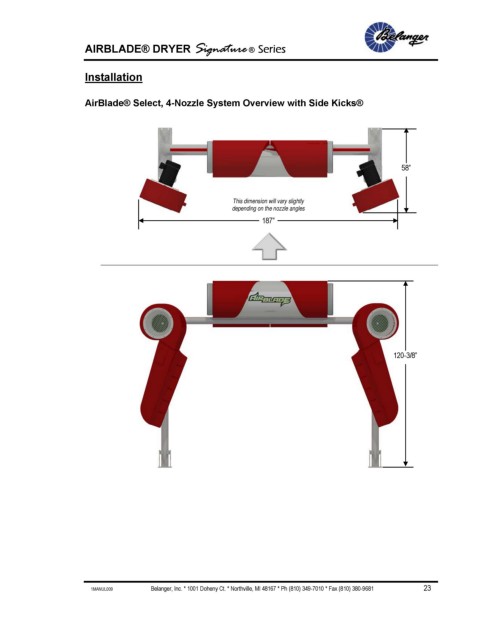

AirBlade® Select, 4-Nozzle System Overview with Side Kicks®
58”
This dimension will vary slightly
depending on the nozzle angles
187”
120-3/8”
