AIRBLADE® DRYER Signature ® Series

Installation

AirBlade® Select, Frame Assembly

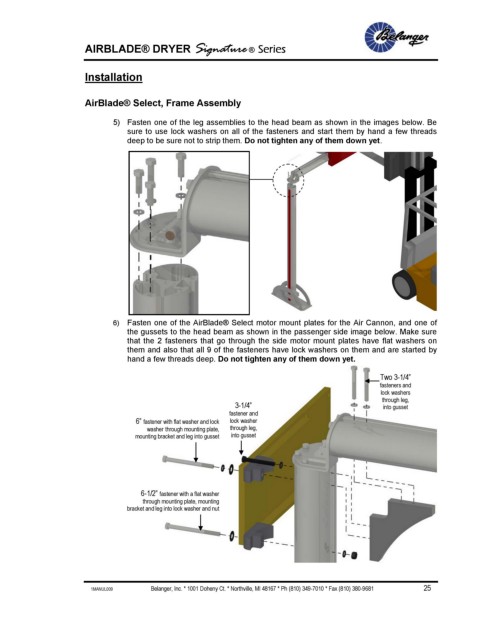

5) Fasten one of the leg assemblies to the head beam as shown in the images below. Be
sure to use lock washers on all of the fasteners and start them by hand a few threads
deep to be sure not to strip them. Do not tighten any of them down yet.

6) Fasten one of the AirBlade® Select motor mount plates for the Air Cannon, and one of
the gussets to the head beam as shown in the passenger side image below. Make sure
that the 2 fasteners that go through the side motor mount plates have flat washers on
them and also that all 9 of the fasteners have lock washers on them and are started by
hand a few threads deep. Do not tighten any of them down yet.
Two 3-1/4”
fasteners and
lock washers
through leg,
3-1/4” into gusset
fastener and
6” fastener with flat washer and lock lock washer
washer through mounting plate, through leg,
mounting bracket and leg into gusset into gusset

6-1/2” fastener with a flat washer
through mounting plate, mounting
bracket and leg into lock washer and nut
