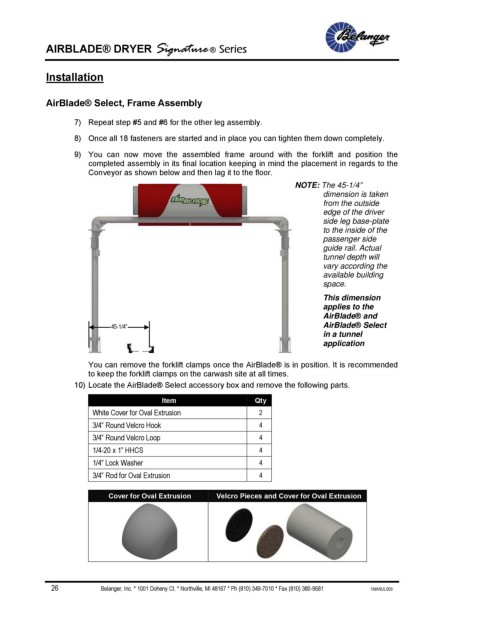

AIRBLADE® DRYER Signature ® Series

Installation

AirBlade® Select, Frame Assembly

7) Repeat step #5 and #6 for the other leg assembly.
8) Once all 18 fasteners are started and in place you can tighten them down completely.

9) You can now move the assembled frame around with the forklift and position the
completed assembly in its final location keeping in mind the placement in regards to the
Conveyor as shown below and then lag it to the floor.
NOTE: The 45-1/4”
dimension is taken
from the outside
edge of the driver
side leg base-plate
to the inside of the
passenger side
guide rail. Actual
tunnel depth will
vary according the
available building
space.

This dimension
applies to the
AirBlade® and
45-1/4” AirBlade® Select
in a tunnel
application

You can remove the forklift clamps once the AirBlade® is in position. It is recommended
to keep the forklift clamps on the carwash site at all times.
10) Locate the AirBlade® Select accessory box and remove the following parts.
Item Qty
White Cover for Oval Extrusion 2
3/4” Round Velcro Hook 4
3/4” Round Velcro Loop 4
1/4-20 x 1” HHCS 4
1/4” Lock Washer 4
3/4” Rod for Oval Extrusion 4

Cover for Oval Extrusion Velcro Pieces and Cover for Oval Extrusion
