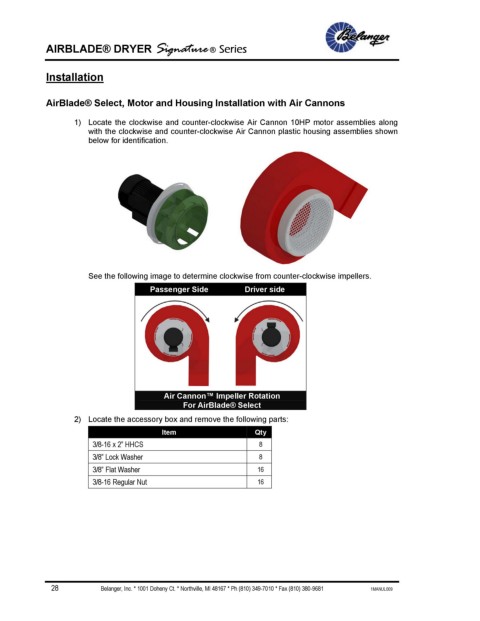

AIRBLADE® DRYER Signature ® Series
Installation
AirBlade® Select, Motor and Housing Installation with Air Cannons
1) Locate the clockwise and counter-clockwise Air Cannon 10HP motor assemblies along
with the clockwise and counter-clockwise Air Cannon plastic housing assemblies shown
below for identification.
See the following image to determine clockwise from counter-clockwise impellers.
Passenger Side Driver side
Air Cannon™ Impeller Rotation
For AirBlade® Select
2) Locate the accessory box and remove the following parts:
Item Qty
3/8-16 x 2” HHCS 8
3/8” Lock Washer 8
3/8” Flat Washer 16
3/8-16 Regular Nut 16
