AIRBLADE® DRYER Signature ® Series


             Installation

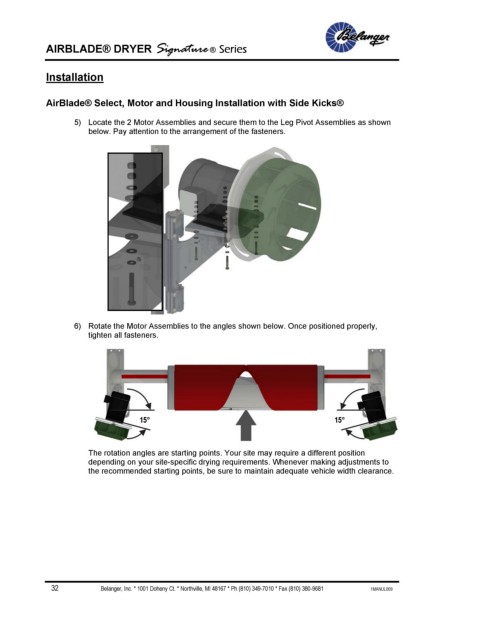

             AirBlade® Select, Motor and Housing Installation with Side Kicks®

                    5)  Locate the 2 Motor Assemblies and secure them to the Leg Pivot Assemblies as shown
                       below. Pay attention to the arrangement of the fasteners.




























                    6)  Rotate the Motor Assemblies to the angles shown below. Once positioned properly,
                       tighten all fasteners.











                                     15°                                              15°



                       The rotation angles are starting points. Your site may require a different position
                       depending on your site-specific drying requirements. Whenever making adjustments to
                       the recommended starting points, be sure to maintain adequate vehicle width clearance.
