AIRBLADE® DRYER Signature ® Series


             Installation



             AirBlade® Express, 6-Nozzle System Overview

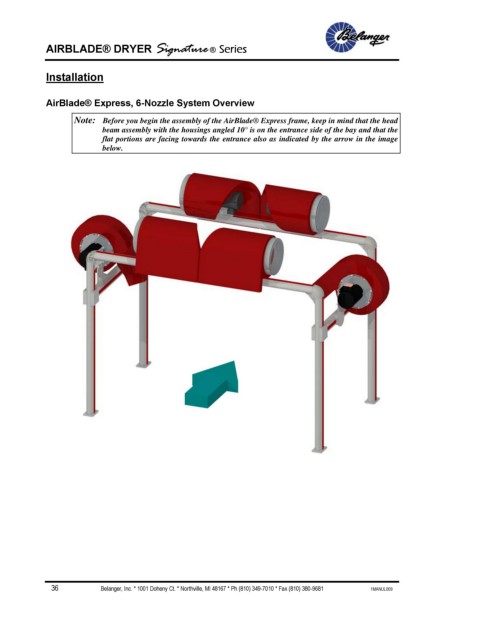

                    Note:  Before you begin the assembly of the AirBlade® Express frame, keep in mind that the head
                           beam assembly with the housings angled 10° is on the entrance side of the bay and that the
                           flat portions are facing towards the entrance also as indicated by the arrow in the image
                           below.
