AIRBLADE® DRYER Signature ® Series
Installation
4-Nozzle “Select” Frame Assembly: Floor Mounted
Side Kick® Side Nozzles

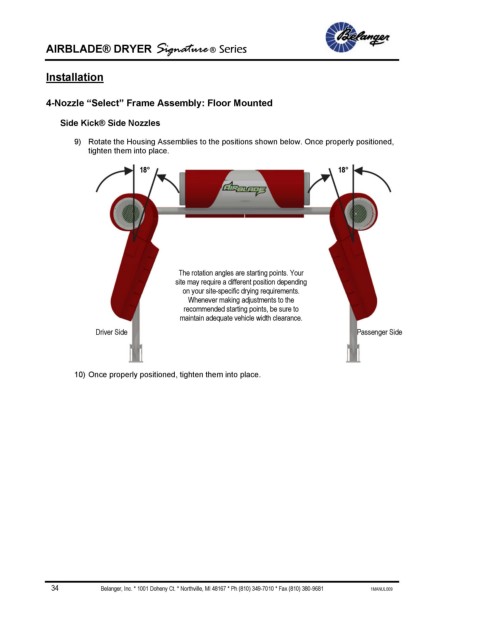

9) Rotate the Housing Assemblies to the positions shown below. Once properly positioned,
tighten them into place.
18° 18°
The rotation angles are starting points. Your
site may require a different position depending
on your site-specific drying requirements.
Whenever making adjustments to the
recommended starting points, be sure to
maintain adequate vehicle width clearance.
Driver Side Passenger Side
10) Once properly positioned, tighten them into place.
