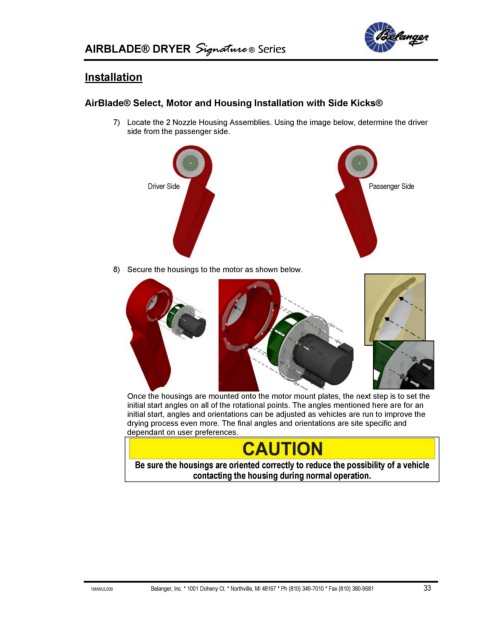

AIRBLADE® DRYER Signature ® Series
Installation
AirBlade® Select, Motor and Housing Installation with Side Kicks®
7) Locate the 2 Nozzle Housing Assemblies. Using the image below, determine the driver
side from the passenger side.
Driver Side Passenger Side
8) Secure the housings to the motor as shown below.
Once the housings are mounted onto the motor mount plates, the next step is to set the
initial start angles on all of the rotational points. The angles mentioned here are for an
initial start, angles and orientations can be adjusted as vehicles are run to improve the
drying process even more. The final angles and orientations are site specific and
dependant on user preferences.
Be sure the housings are oriented correctly to reduce the possibility of a vehicle
contacting the housing during normal operation.
