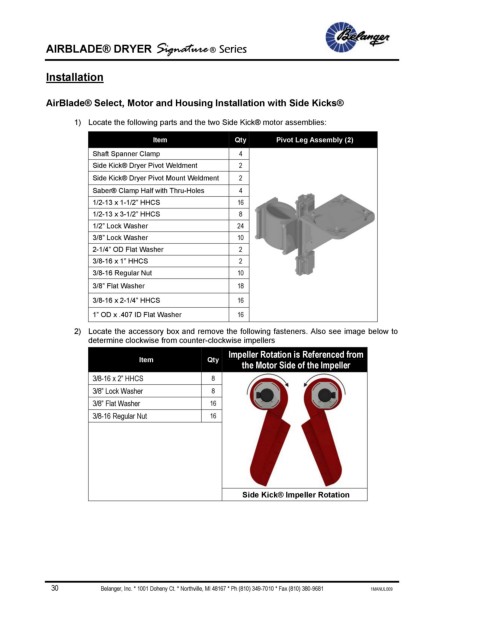

AIRBLADE® DRYER Signature ® Series

Installation

AirBlade® Select, Motor and Housing Installation with Side Kicks®

1) Locate the following parts and the two Side Kick® motor assemblies:

Item Qty Pivot Leg Assembly (2)
Shaft Spanner Clamp 4
Side Kick® Dryer Pivot Weldment 2
Side Kick® Dryer Pivot Mount Weldment 2
Saber® Clamp Half with Thru-Holes 4
1/2-13 x 1-1/2” HHCS 16
1/2-13 x 3-1/2” HHCS 8
1/2” Lock Washer 24
3/8” Lock Washer 10
2-1/4” OD Flat Washer 2
3/8-16 x 1” HHCS 2
3/8-16 Regular Nut 10
3/8” Flat Washer 18
3/8-16 x 2-1/4” HHCS 16

1” OD x .407 ID Flat Washer 16
2) Locate the accessory box and remove the following fasteners. Also see image below to
determine clockwise from counter-clockwise impellers
Impeller Rotation is Referenced from
Item Qty
the Motor Side of the Impeller
3/8-16 x 2” HHCS 8
3/8” Lock Washer 8
3/8” Flat Washer 16
3/8-16 Regular Nut 16

Side Kick® Impeller Rotation
