AIRBLADE® DRYER Signature ® Series

Installation

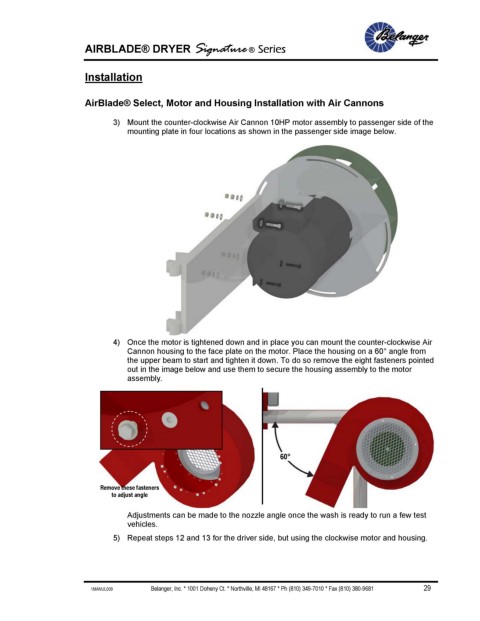

AirBlade® Select, Motor and Housing Installation with Air Cannons

3) Mount the counter-clockwise Air Cannon 10HP motor assembly to passenger side of the
mounting plate in four locations as shown in the passenger side image below.

4) Once the motor is tightened down and in place you can mount the counter-clockwise Air
Cannon housing to the face plate on the motor. Place the housing on a 60° angle from
the upper beam to start and tighten it down. To do so remove the eight fasteners pointed
out in the image below and use them to secure the housing assembly to the motor
assembly.

60°

Remove these fasteners
to adjust angle

Adjustments can be made to the nozzle angle once the wash is ready to run a few test
vehicles.
5) Repeat steps 12 and 13 for the driver side, but using the clockwise motor and housing.
