AIRBLADE® DRYER Signature ® Series
Installation

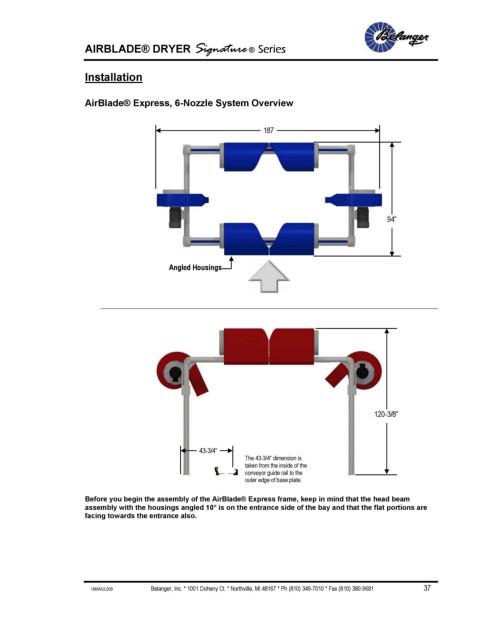

AirBlade® Express, 6-Nozzle System Overview
187
94”
Angled Housings
120-3/8”
43-3/4”
The 43-3/4” dimension is
taken from the inside of the
conveyor guide rail to the
outer edge of base plate.
Before you begin the assembly of the AirBlade® Express frame, keep in mind that the head beam
assembly with the housings angled 10° is on the entrance side of the bay and that the flat portions are
facing towards the entrance also.
1MANUL009 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 37
