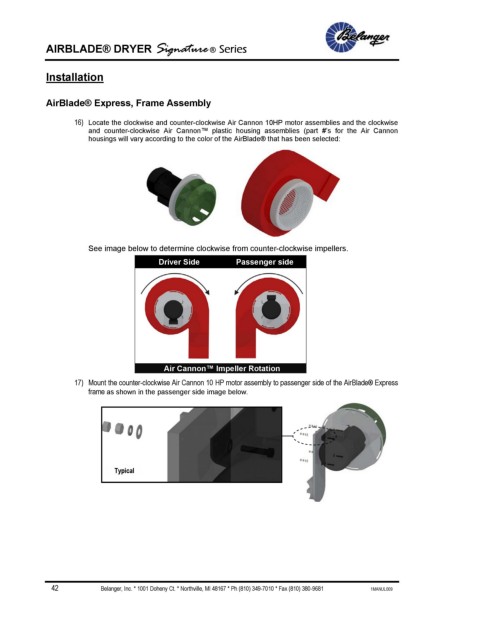

Installation
AirBlade® Express, Frame Assembly
16) Locate the clockwise and counter-clockwise Air Cannon 10HP motor assemblies and the clockwise
and counter-clockwise Air Cannon™ plastic housing assemblies (part #’s for the Air Cannon
housings will vary according to the color of the AirBlade® that has been selected:
See image below to determine clockwise from counter-clockwise impellers.
Driver Side Passenger side
Air Cannon™ Impeller Rotation
17) Mount the counter-clockwise Air Cannon 10 HP motor assembly to passenger side of the AirBlade® Express
frame as shown in the passenger side image below.
Typical
