AIRBLADE® DRYER Signature ® Series
Installation
AirBlade® Express, Frame Assembly

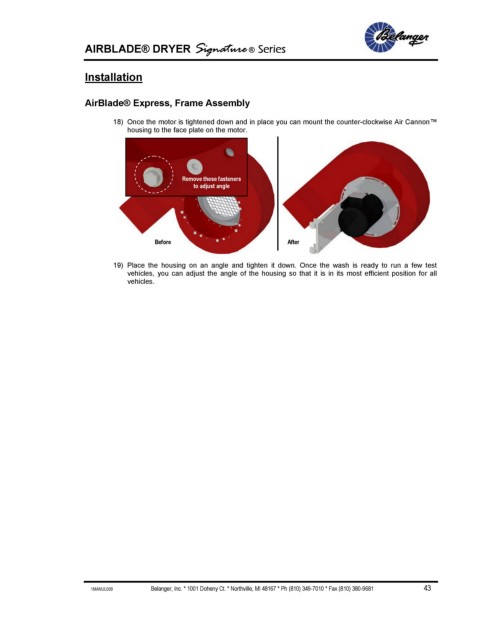

18) Once the motor is tightened down and in place you can mount the counter-clockwise Air Cannon™
housing to the face plate on the motor.
Remove these fasteners
to adjust angle
Before After
19) Place the housing on an angle and tighten it down. Once the wash is ready to run a few test
vehicles, you can adjust the angle of the housing so that it is in its most efficient position for all
vehicles.
