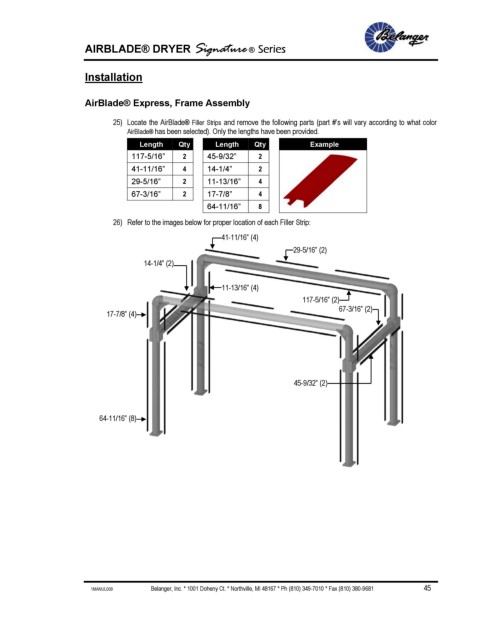

AIRBLADE® DRYER Signature ® Series
Installation
AirBlade® Express, Frame Assembly
25) Locate the AirBlade® Filler Strips and remove the following parts (part #’s will vary according to what color
AirBlade® has been selected). Only the lengths have been provided.
Length Qty Length Qty Example
117-5/16” 2 45-9/32” 2
41-11/16” 4 14-1/4” 2
29-5/16” 2 11-13/16” 4
67-3/16” 2 17-7/8” 4
64-11/16” 8
26) Refer to the images below for proper location of each Filler Strip:
41-11/16” (4)
29-5/16” (2)
14-1/4” (2)
11-13/16” (4)
117-5/16” (2)
67-3/16” (2)
17-7/8” (4)
45-9/32” (2)
64-11/16” (8)
